## **SUE-Sim: End-to-End Scale-Up Ethernet Simulation Platform** **Institute of Information Engineering, Chinese Academy of Sciences** **State Key Laboratory of Information Security** ---

License ns--3-3.36/3.44 Platform Language

</div>

Table of Contents

v2.1 (2025-12-07)

v2.0 (2025-11-09)

v1.0 (2025-10-28)

SUE-Sim Overview

SUE-Sim is an end-to-end, high-precision network simulation platform for the Scale-Up Ethernet framework(SUE).

Broadcom’s SUE provides a low-latency, high-bandwidth interconnect framework for Ethernet-based XPU scale-up networks, supporting efficient interconnection of large-scale XPU clusters at rack-level and even multi-rack-level. It aims to address the increasingly prominent network bottleneck issues caused by the growing complexity of AI and machine learning workloads.

SUE-Sim serves two primary objectives:

Current Version: SUE-Sim v2.1

System Architecture

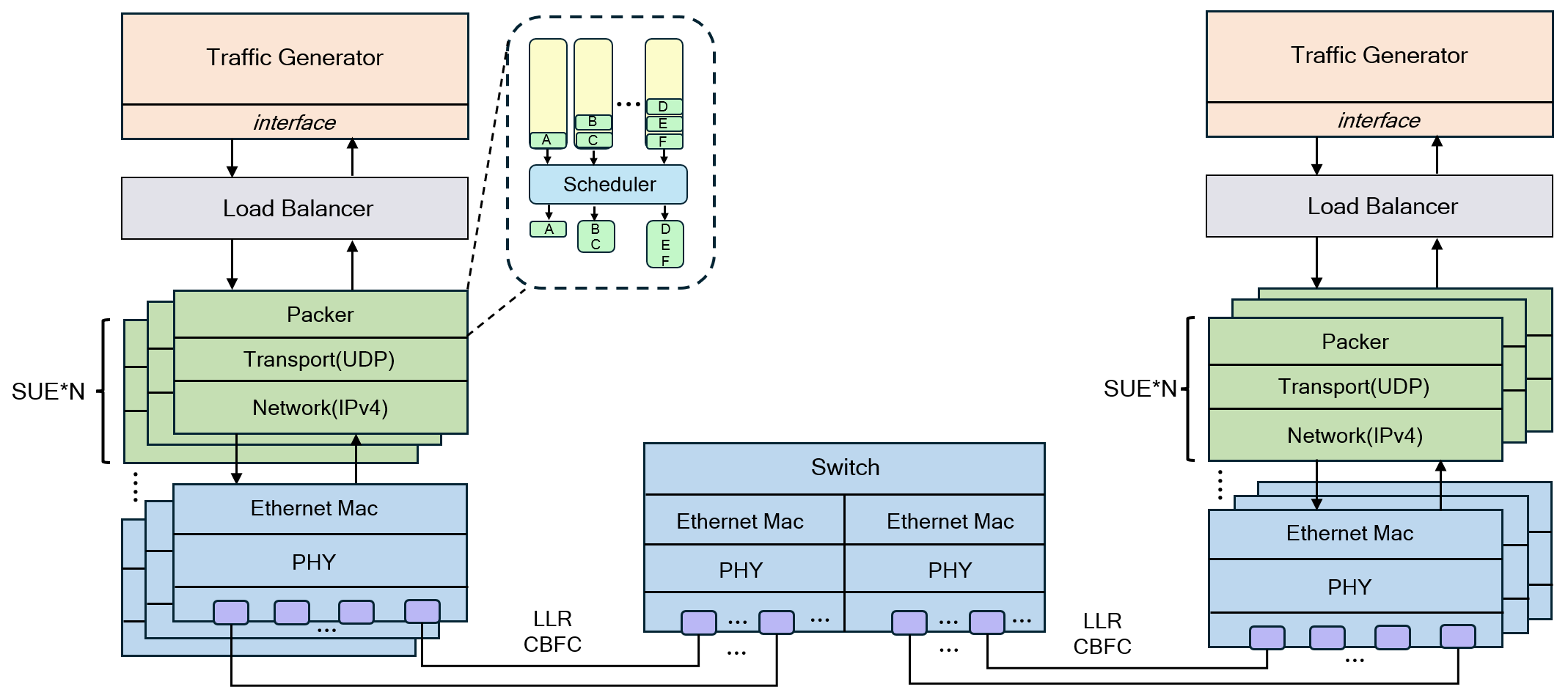

XPU Internal Architecture Diagram

Core Components

Repository Structure

SUE-Sim/
├── scratch/                        # Simulation scripts
│   └── SUE-Sim/                    # Main simulation script and configurations
│       ├── SUE-Sim.cc              # Entry point for SUE simulation
│       ├── config/                 # Simulation configuration files
│       │   └── test-fine-grained-config.csv  # Fine-grained test configuration
│       └── trace/                            # Traffic trace files
│           └── all_trace_entries.csv         # Complete traffic trace data
│
├── src/                              # ns-3 source code
│   └── sue-sim-module/               # SUE module
│       ├── model/                    # Core models
│       │   ├── simulation-config/                      # Simulation framework
│       │   │   ├── application-deployer.cc/.h          # Application deployment
│       │   │   ├── common-utils.cc/.h                  # Common utility functions
│       │   │   ├── parameter-config.cc/.h              # Configuration parameters
│       │   │   └── topology-builder.cc/.h              # Network topology builder
│       │   ├── point-to-point-sue-net-device.cc/.h     # Net device core
│       │   ├── point-to-point-sue-channel.cc/.h        # P2P channel
│       │   ├── sue-cbfc.cc/.h                          # Credit-based flow control
│       │   ├── sue-cbfc-header.cc/.h                   # CBFC header
│       │   ├── sue-header.cc/.h                        # SUE header
│       │   ├── sue-llr.cc/.h                           # Link-level retransmission
│       │   ├── sue-client.cc/.h                        # Multi-port client
│       │   ├── sue-server.cc/.h                        # Unpack server
│       │   ├── sue-switch.cc/.h                        # Basic Layer 2 switch
│       │   ├── sue-queue-manager.cc/.h                 # Queue management system
│       │   ├── performance-logger.cc/.h                # Performance logger
│       │   ├── traffic-generator.cc/.h                 # Traffic generator
│       │   ├── traffic-generator-config.cc/.h          # Traffic generator configuration
│       │   ├── traffic-generator-trace.cc/.h           # Trace-based traffic generator
│       │   ├── load-balancer.cc/.h                     # Load balancer
│       │   ├── sue-tag.cc/.h                           # SUE timestamp and PPP sequence tag
│       │   ├── sue-ppp-header.cc/.h                    # PPP header
│       │   └── sue-utils.cc/.h                         # SUE utility functions
│       ├── helper/                  # Helper classes
│       │   └── sue-sim-module-helper.cc/.h
│       └── CMakeLists.txt           # Build configuration
│
├── performance-data/                  # Performance analysis results

├── log/                              # Simulation logs

└── README.md                         # Project documentation

ns-3 Version Support

🔄 SUE-Sim supports multiple ns-3 versions

Getting Started

Environment Requirements

Installation

Step 1: Install System Dependencies

First, install the essential build tools and libraries:

sudo apt update
sudo apt install build-essential cmake git software-properties-common

Step 2: Check and Upgrade GCC Version

Check your current GCC version:

gcc --version

If your GCC version is 10.1.0 or higher, proceed to Step 3.

If your GCC version is below 10.1.0 (Ubuntu 20.04 default is 9.3.0), upgrade it:

# Add Ubuntu Toolchain PPA for newer GCC versions
sudo add-apt-repository ppa:ubuntu-toolchain-r/test
sudo apt update
# Install GCC 10 and G++ 10
sudo apt install gcc-10 g++-10
# Set GCC 10 as the default compiler
sudo update-alternatives --install /usr/bin/gcc gcc /usr/bin/gcc-10 100
sudo update-alternatives --install /usr/bin/g++ g++ /usr/bin/g++-10

Step 3: Clone and Configure SUE-Sim

Important Note: This version of ns3 does not allow direct execution as root user, please run the following commands as a regular user.

# Clone the project
git clone https://github.com/kaima2022/SUE-Sim.git
cd SUE-Sim

# Configure ns-3 environment
./ns3 configure --enable-examples --enable-tests

Step 4: Build and Verify

# Build the project
./ns3 build

# Verify installation
./ns3 run "scratch/SUE-Sim/SUE-Sim --help"

Usage

SUE-Sim supports three traffic modes: Uniform Traffic, Trace-based Traffic, and Configuration-based Traffic. The following command demonstrates a 4-node XPU test scenario:

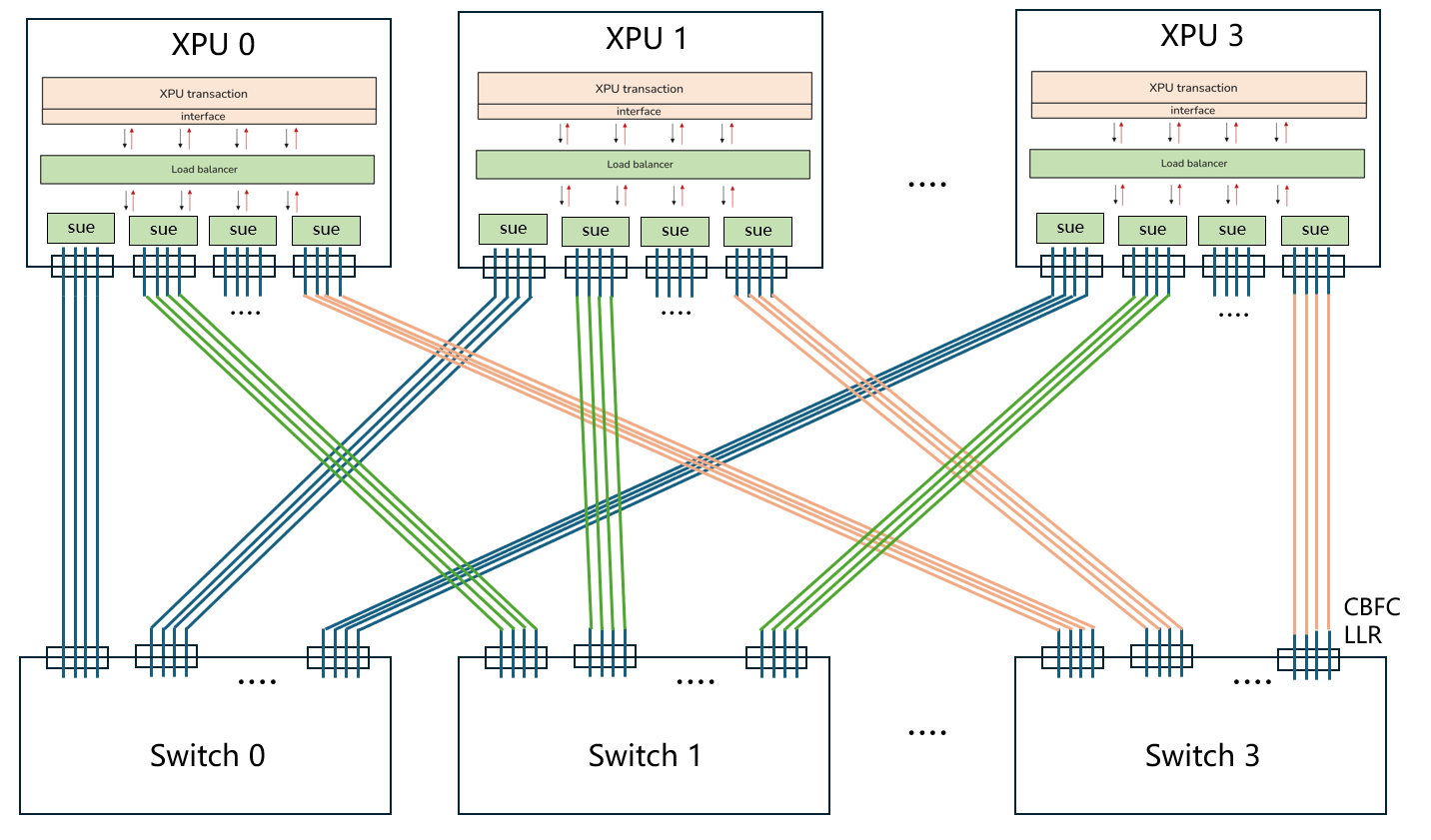

Topology Composition

XPU Internal Architecture Diagram

1. Uniform Traffic Mode

Generates uniform traffic patterns across all nodes:

./ns3 run "scratch/SUE-Sim/SUE-Sim --nXpus=4 --portsPerXpu=16 --portsPerSue=4 --threadRate=3000000 --totalBytesToSend=5" > log/sue-sim.log 2>&1

2. Trace-based Traffic Mode

Uses real traffic traces for realistic simulation:

./ns3 run "scratch/SUE-Sim/SUE-Sim --nXpus=4 --portsPerXpu=4 --portsPerSue=1 --enableTraceMode=true --traceFilePath=scratch/SUE-Sim/trace/all_trace_entries.csv" > log/sue-sim.log 2>&1

Uses detailed configuration files for custom traffic patterns:

./ns3 run "scratch/SUE-Sim/SUE-Sim --nXpus=4 --portsPerXpu=4 --portsPerSue=1 --enableFineGrainedMode=true --fineGrainedConfigFile=scratch/SUE-Sim/config/test-fine-grained-config.csv --LinkCredits=900 --SwitchCredits=300" > log/sue-sim.log 2>&1

Note: NS3 logging is disabled by default. Performance data is automatically saved to performance-data/data.

Configuration Parameters

SUE-Sim supports configuration parameters, covering network topology, traffic generation, link layer, CBFC flow control, and other aspects. For complete parameter descriptions, please refer to:

📋 Detailed Configuration Parameters Documentation

Contributing

Contributions are welcome! Please feel free to submit a Pull Request. For major changes, please open an issue first to discuss what you would like to change.

Contact us

For questions, suggestions, or bug reports, please feel free to contact us:

We look forward to hearing from you and appreciate your feedback!

Citation

If you find this project useful for your research, please consider citing it in the following format:

@software{SUESimulator,
  month = {10},
  title = ,
  url = {https://github.com/kaima2022/SUE-Sim},
  version = {1.0.0},
  year = {2025}
}
If you find this project helpful, please consider giving it a ⭐ star! Your support is greatly appreciated. Made by the SUE-Sim Project Team
